ESEN
DUCT
DUCT
- EsenDuct is produced with top quality HDPE material and has a very long service life.
- EsenDuct can be pulled inside main conduits or buried in the trench.
- EsenDuct can be produced as SiliconCore inner layer and/or Ribbed in inner layer.
- EsenDuct can be produced with different color and stripes upon your request.

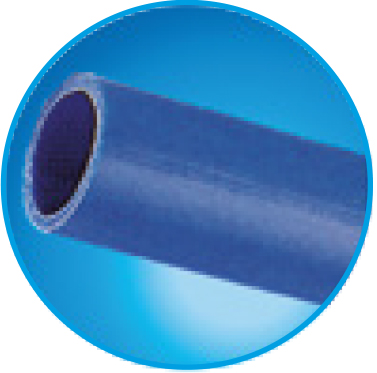

| SINGLE DUCT | |
|---|---|
| OD / ID (mm) | |
| 20/16 | 40/32,6 |
| 25/20,4 | 40/35,2 |
| 32/26 | 50/40,8 |
| 32/28 | 50/44 |

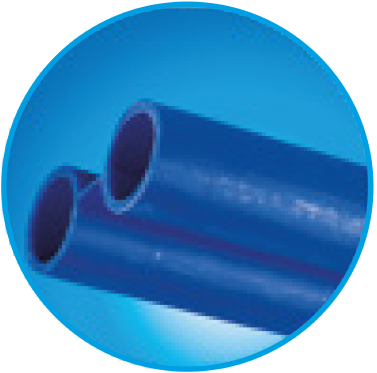

| DOUBLE DUCT | |||
|---|---|---|---|
| I.DUCT | II.DUCT | L1 (mm) | L (mm) |
| OD / ID (mm) | OD / ID (mm | OD / ID (mm | OD / ID (mm |
| 32/27 | 32/27 | 16 | 80 |
| 40/32,6 | 40/32,6 | 16 | 96 |

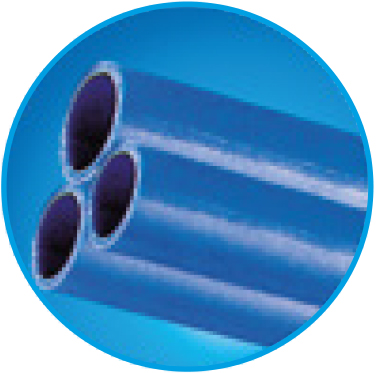

| TRIPLE DUCT | |||
|---|---|---|---|
| I.DUCT | II.DUCT | L1 (mm) | L (mm) |
| OD / ID (mm) | OD / ID (mm | OD / ID (mm | OD / ID (mm |
| 32/27 | 32/27 | 16 | 80 |
| 40/32,6 | 40/32,6 | 16 | 96 |

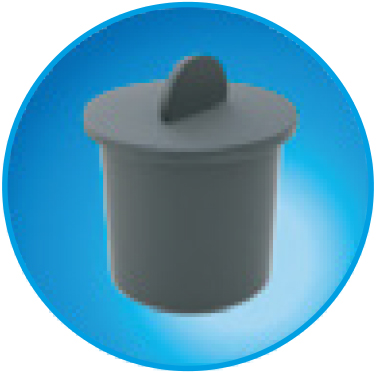

| END PLUG | |||
|---|---|---|---|
| D | L (mm) | ||
| 20 | 51 | ||
| 25 | 51 | ||
| 32 | 51 | ||
| 40 | 51 | ||
| 50 | 51 | ||
